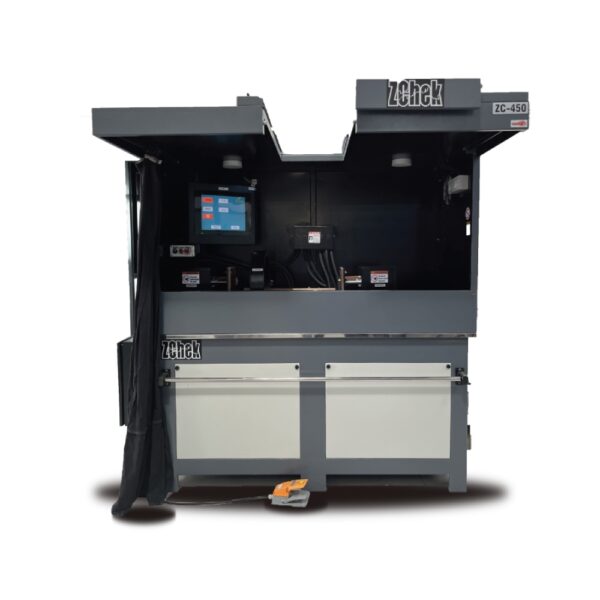

D-Series

Magnetic particle Equipment with 3-Phase FWDC Capability

ZChem manufactures most powerful wet magnetic bench units for maximum magnetization with 3-phase FWDC capability and Pole reversing DC demagnetization.
The D-Series is one of our most powerful wet magnetic benches. Providing 3-phase Full Wave Direct Current, this MPI equipment offers maximum magnetization for finding surface and sub-surface defects with clearer indications while using minimal power.
The two outputs are independently adjustable to set each magnetic field, circular or longitudinal.

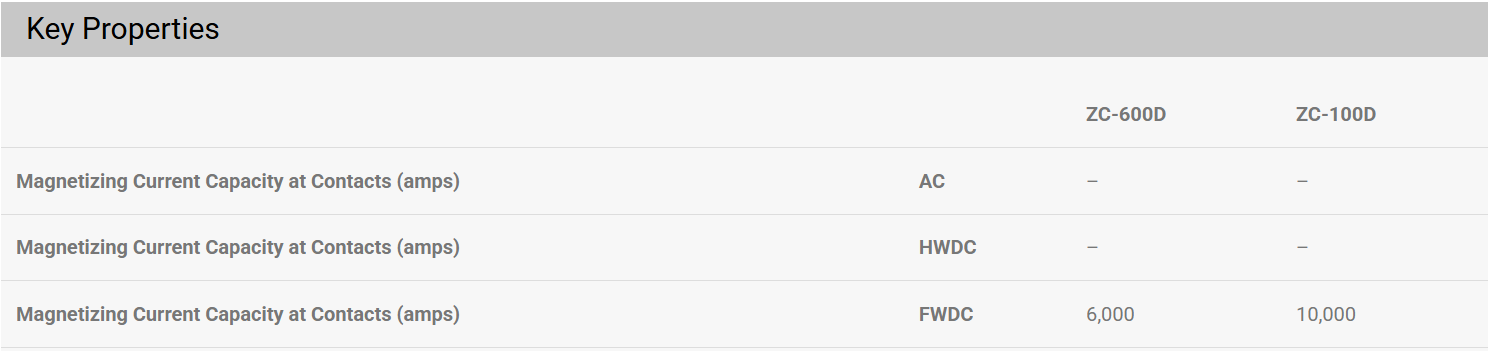

D-Series magnetic benches are available in two models: ZC-600D and ZC-100D

Contact us for more details
Categories: Equipment(MPI), Magnetic Bench Equipment, Magnetic Particle Inspection

Designed to meet the requirements of ASTM – E 1444, ASTM E 3024, ASTM E3024 M, ASTM E 709 and NADCAP

    • Superior Stainless Steel Bath tank & Main Tank design
    • Thyristorized current control – stepless control with Feed back
    • Current Flow Assurance Indicator – Visual & Audio
    • Superior 3 Ph Transformer WITH QUICK BREAK CIRCUIT
    • Magnetizing Shot Duration control from 0.5 to 4 Sec
    • Unique Bath Pump with controlled agitation system
    • Superior Pneumatic cylinders only by SMC or FESTO
    • MS Powder coated Inspection Hood
    • Digital Ammeters with memory retention
    • Interlocking for set current assurance
    • Interlock for Demagnetization sequence (Optional)
    • Data recording logging and recall with optional connectivity to internet
    • Powder coated Metal Structural Hood with front Sliding Curtain
    • Dark adaptation timer
    • Adjustable Tail Stock with a Rachet wheel
    • In Built Reversing DC Demagnetization
    • Bath Level indicator & alarm
    • Low Air Pressure alarm
    • Allen Bradley PLC & HMI controls

NDT Type
Fluorescent Magnetic Particle Testing, Visible Magnetic Particle Testing

Compliance with Aerospace Standards

  • Examine diverse components with confidence using equipment meeting rigorous Nadcap specifications
  • Ensure precise and consistent testing through direct control of amperage and effective fluctuation management
