Go!SCAN 3D

The Go!SCAN 3D is our fastest, user-friendly handheld 3D scanner. A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to “get it right” the first time. With its seamless integration to your 3D modelling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market.

Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette. Just go…and scan!

Level of Details & Scan Quality

The high resolution and level of details of the Go!SCAN 3D provides astounding scan quality. Featuring full support of color, it creates spectacular results!

  • Reliable results
  • Resolution of 0.100 mm
  • High resolution for intricate details

Portability

Everything about the Go!SCAN 3D has been considered to make your work more efficient. Its portability is second-to-none: take it anywhere you need!

  • Lightweight
    1.25 kg (2.7 lb)
  • Dynamic referencing
    Both the object and scanner can be moved freely during scanning
  • Fits into a suitcase

Faster 3D Scanning Process

Your work needs to be completed quickly? The Go!SCAN 3D is our fastest technology. Most objects can be scanned in mere minutes and quickly integrated into your preferred software, whether for reverse engineering, computer aided design or 3D printing software.

  • Instant mesh
    Ready-to-use files
  • High measurement rate
    Up to 1,500,000 measurements/s
    99 white light scanning lines
  • Quick set-up
    Up-and-running in less than 2 minutes

The Go!SCAN 3D is so user-friendly that anyone can begin scanning both small parts and large objects within minutes, even without prior experience. It is designed to perform without any part preparation; simply point and shoot! An instant preview is provided during scanning, showing what is left to capture in real‑time.

Plug and play

Simple user interface and real‑time mesh visualization

Scan any object with a single device

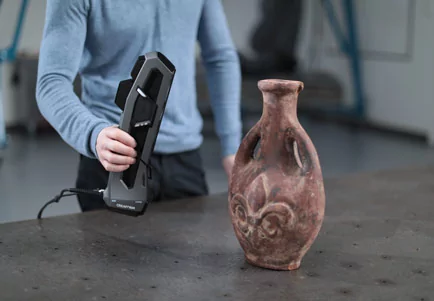

Positioning using geometry, color or targets

Innovating technology that provides TRUaccuracy™, TRUsimplicity™, TRUportability™ as well as real speed to your metrology‑grade applications.

Go!SCAN SPARK™
Accuracy(1) Up to 0.050 mm
(0.0020 in)
Volumetric accuracy(2)
(based on part size)		 0.050 mm + 0.150 mm/m
(0.0020 in + 0.0018 in/ft)
Volumetric accuracy with MaxSHOT Next™ | Elite(3) 0.050 mm + 0.015 mm/m
(0.0020 in + 0.00018 in/ft)
Measurement resolution 0.100 mm
(0.0039 in)
Mesh resolution 0.200 mm
(0.0078 in)
Measurement rate 1,500,000 measurements/s
Light source White light (99 stripes)
Positioning methods Geometry and/or color and/or targets
Scanning area 390 x 390 mm
(15.4 x 15.4 in)
Stand-off distance 400 mm
(15.7 in)
Depth of field 450 mm
(17.7 in)
Part size range (recommended) 0.1–4 m
(0.3–13 ft)
Texture resolution 50 to 200 DPI
Texture colors 24 bits
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software (4)
3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight 1.25 kg
(2.7 lb)
Dimensions
(LxWxH)		 89 x 114 x 346 mm
(3.5 x 4.5 x 13.6 in)
Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)		 10-90%
Certifications EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents CA 2,600,926, CN 200680014069.3, US 7,912,673, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, EP (FR, UK, DE) 2,278,271, IN 266,573, US 7,487,063, CA 2,529,044, CA 2,810,587, US 8,836,766, JP 5,635,218, CA 2,875,754, EP (FR, UK, DE) 2,751,521, US 9,325,974, CA 2,835,306, CN 201280023545.3, CN 201280049264.5, JP 6,025,830, EP (FR, UK, DE) 2,875,314, CN ZL 201380029999.6, JP 6,267,700, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X
