HandySCAN 3D|BLACK Series

The HandySCAN 3D™ line-up is the reference in portable metrology‑grade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.

This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.

Accurate, Reliable & High-Resolution 3D Measurements

The HandySCAN 3D|BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and high‑quality scan.

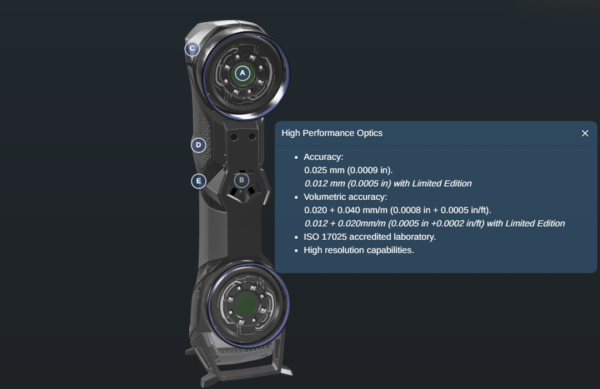

  • Accuracy
    0.025 mm (0.0009 in)
    0.012 mm (0.0005 in) with Limited Edition
  • Volumetric accuracy
    0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
    0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition
  • Reliable acceptance test
    Based on VDI/VDE 2634 part 3 standard
    ISO 17025 accredited laboratory
  • High resolution for fine details
  • Integrated photogrammetry
    High accuracy on large measurements with volumetric accuracy optimization

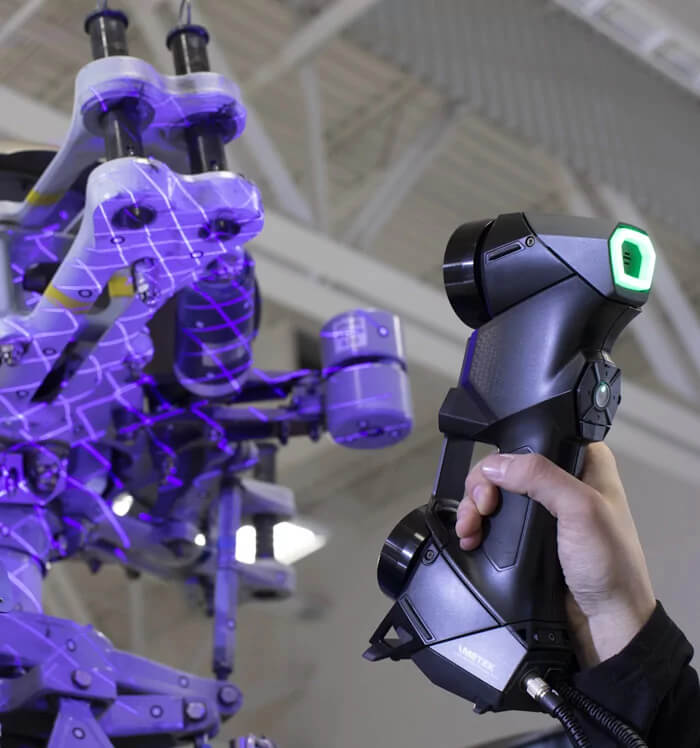

Portability

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.

  • Lightweight 0.94 kg (2.1 lb)
  • Self-positioning with dynamic referencing
  • Fits into a suitcase
  • Take it anywhere you need

Faster 3D Scanning Process

The HandySCAN 3D|BLACK Series scanners features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!

  • Ready-to-use files
  • High measurement rate
    Up to 1,300,000 measurements/s

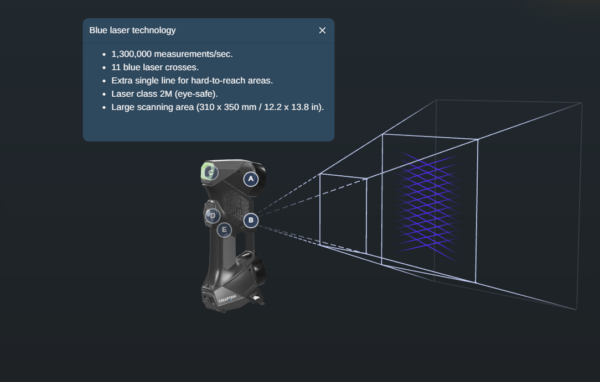

  • Large scanning area of 11 laser crosses
  • Quick setup
    Up-and-running in less than 2 minutes

With its user-friendly interface and ergonomic design, this 3D measurement solution is easy-to-use and has a short learning curve. Its versatility gives the opportunity to scan various object sizes and surface types in real time—all with the same device.

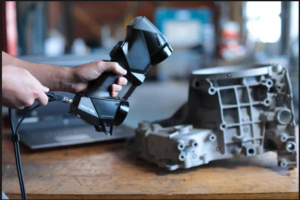

Plug and play

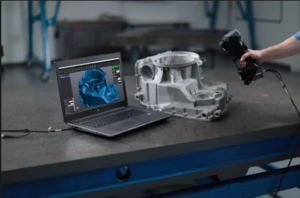

Simple user interface and real‑time mesh visualization

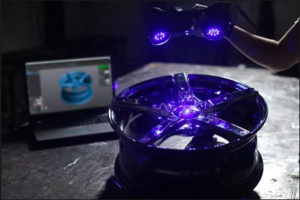

Masters complex and difficult surfaces

One device for all shapes and sizes

Innovating technology that provides accuracy, simplicity, portability as well as real speed to your metrology-grade applications.

HandySCAN BLACK™ HandySCAN BLACK™|Elite
Accuracy(1) 0.035 mm
(0.0014 in)
0.025 mm
(0.0009 in)
0.012 mm (0.0005 in) with Limited Edition (5)
Volumetric accuracy(2)
(based on part size)
0.020 mm + 0.060 mm/m
(0.0008 in + 0.0007 in/ft)
0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft)
with Limited Edition (5)
Volumetric accuracy with MaxSHOT Next™ | Elite(3) 0.020 mm + 0.015 mm/m
(0.0008 in + 0.00018 in/ft)
Measurement resolution 0.025 mm
(0.0009 in)
Mesh resolution 0.100 mm
(0.0039 in)
Measurement rate 800,000 measurements/s 1,300,000 measurements/s
Light source 7 blue laser crosses 11 blue laser crosses
(+ 1 extra line)
Laser class 2M
(eye-safe)
Scanning area 310 x 350 mm
(12.2 x 13.8 in)
Stand-off distance 300 mm
(11.8 in)
Depth of field 250 mm
(9.8 in)
Part size range (recommended) 0.05–4 m
(0.15–13 ft)
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software4 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight 0.94 kg
(2.1 lb)
Dimensions
(LxWxH)
79 x 142 x 288 mm
(3.1 x 5.6 x 11.3 in)
Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)
10-90%
Certifications EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X
