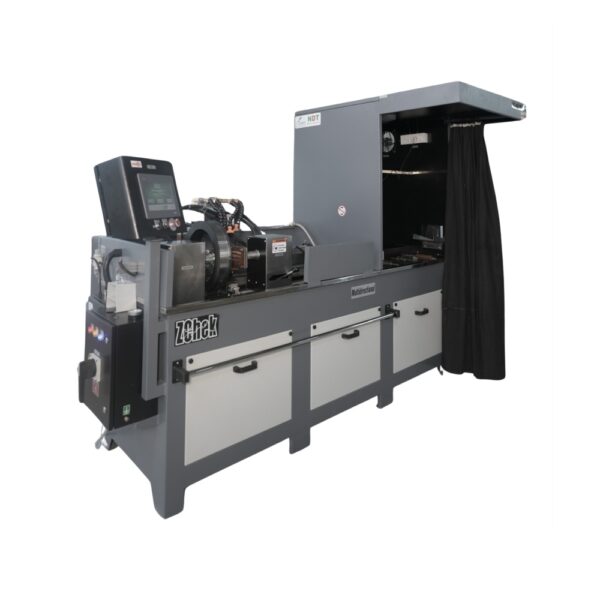

MD-Series

Multidirectional Benche Equipment

Most versatile wet magnetic benches with multi-directional capabilities with each output offering AC, HWDC or 1-phase FWDC output.
The MD-Series multi-directional magnetic bench offers Alternating Current, Half Wave Direct Current and 1-phase Full Wave Direct Current for time-saving multidirectional magnetization which can find defects in all orientations with one mag-cycle.
The two outputs (contact and Flux Flow coil) each offer AC, HWDC or 1-Phase FWDC, and are independently adjustable to balance the magnet field intensity.

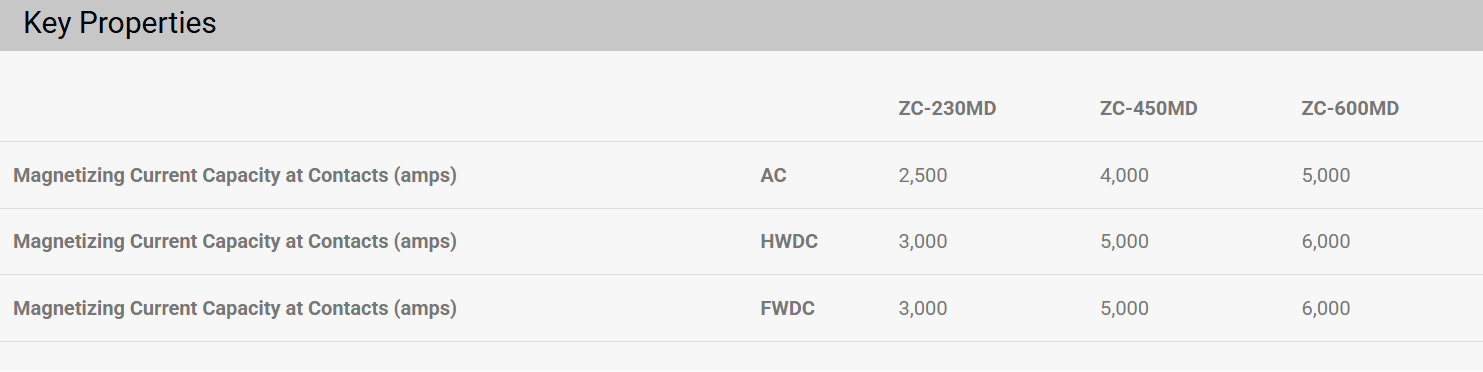

MD-Series magnetic benches are available in three models: ZC-230MD, ZC-450MD and ZC-600MD

Contact us for more details
Categories: Equipment(MPI), Magnetic Bench Equipment, Magnetic Particle Inspection

  • Designed to meet the requirements of ASTM – E 1444, ASTM E 3024, ASTM E3024 M, ASTM E 709 and NADCAP
  • Superior Stainless Steel Bath tank & Main Tank design
  • Thyristorized current control – stepless control with Feedback
  • Independent power transformers for contact & coil magnetizing
  • Independently controlled magnetizing circuits for contact/coil & flux flow through HMI with programmable recipes
  • Current Flow Assurance Indicator – Visual & Audio
  • Superior Transformer designed with F Class insulation
  • Unique Bath Pump with controlled agitation system
  • Superior Pneumatic cylinders only by SMC or FESTO
  • MS Powder coated Inspection Hood
  • Current reading on a large HMI screen
  • Motorized tail stack and magnetizing cables with cable protection
  • Digital Ammeters with memory retention & Shot Duration Timer (Only For Aerospace Application)
  • Transformer Over load Protection & alarm
  • Interlocking for set current assurance
  • Interlock for Demagnetization sequence (Optional)
  • Powder coated Metal Structural Hood with front Sliding Curtain with White Light & Exhaust Fan
  • Dark Adaptation Timer
  • Data recording logging and recall with optional connectivity to internet
  • Bath Level indicator & alarm
  • Allen Bradley PLC & HMI controls – No Manual Features
  • Adjustable Tail Stock with a Rachet wheel
  • Low Air Pressure alarm
