M70
M70
The M70 is the most popular product among the manual putty range because it fits most use case perfectly and is compatible with the double blade cutter.
Its initial malleable consistency, similar to clay, allows the M70 to be easily applied by hand to vertical or overhanging surfaces.
Once polymerized, it creates a Semi-Flexible impression with a hardness of 70 Shore A and has a low deformation capacity.
It can withstand a maximum Removal Constraint of 5%, making it ideal for low complexity shapes.

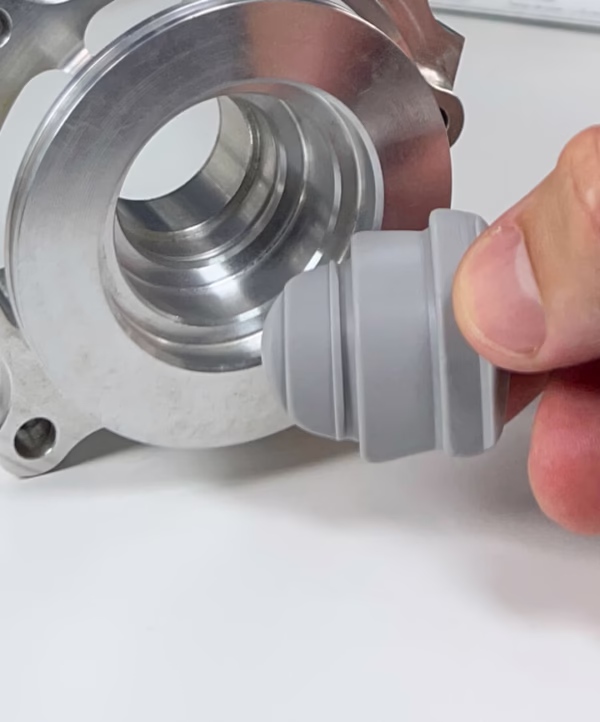

This product is recommended for creating simple external shape impressions, such as threads and grooves, on medium to large parts.
Additionally, it is excellent for creating custom precision poses for complex or fragile parts. Developed as a modern replacement for the old generation KV-AD, the M70 brings improved performance and ease of use.
You can cut this impression with the Double Blade Cutter to obtain a detailed profile of the replica. These profiles significantly enhance the accuracy and quality of your final measurements.
- Removal Constraint : 5%
- Initial Consistency : Manual Putty
- Final Consistency : Medium
- Final Hardness : 70 Shore A
- Working Time : 01:00 min.
- Curing Time : 05:00 min.
- Polymerization Time : 08:00 min.
- Double Blade Cutter : YES
- Measurements : WITHOUT CONTACT
The M70 is suitable for the following applications:

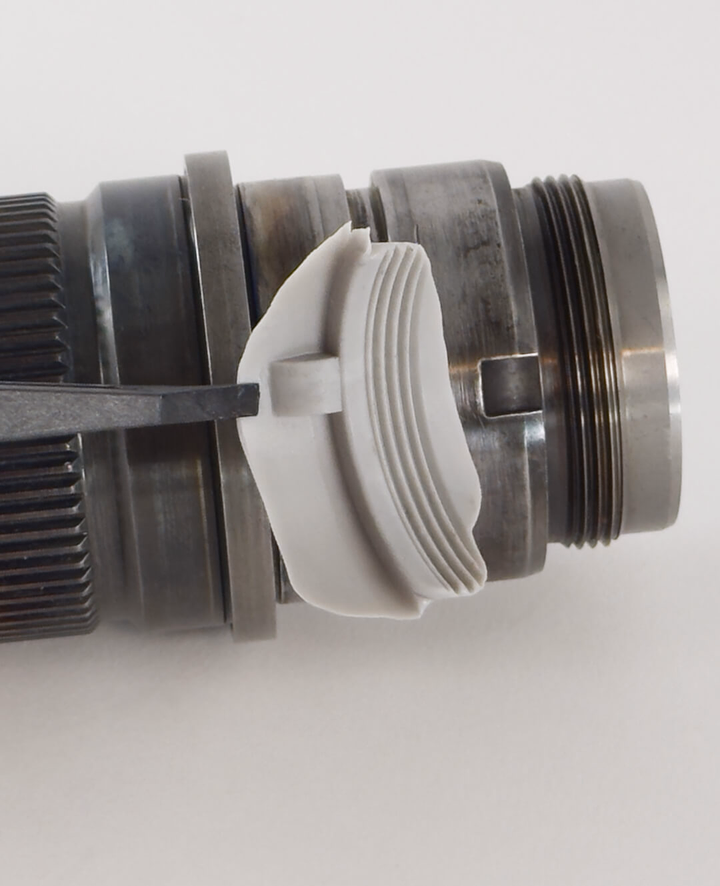

- Dimensional control of simple external shapes. It is especially used for evaluating threads in the Oil & Gas industry without dismantling the pipes.
- Custom posing & part reinforcement. Its semi-flexible final consistency both absorb vibrations & solidify parts before machining.

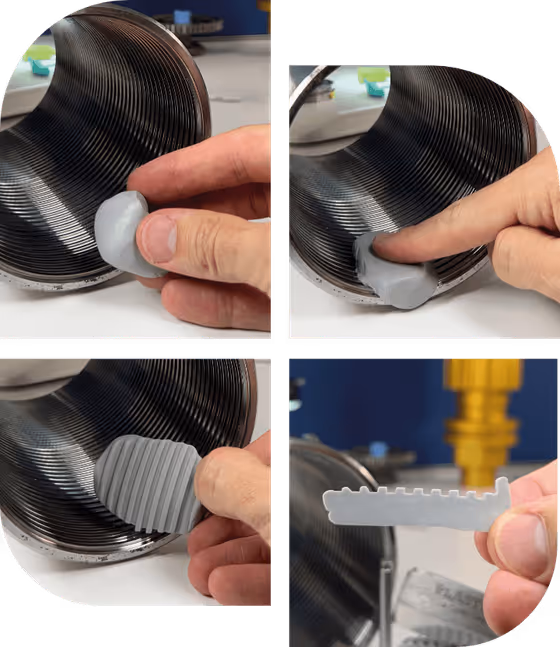

To apply this product, mix the two components in equal quantities by hand. Stir actively until you achieve a homogeneous color, which should takes about 20 seconds.
Once mixed, apply the plastiform quickly before it cures. Be careful, as you cannot apply the product once the working time has passed.
Before using any product from the Plastiform range, ensure your surface is clean by using the DN1 degreaser.
As the M70 impression is semi-flexible, it can be controlled without contact using visual measuring systems such as: Profile projectors or Optical measuring system.
It can also be checked with contact measuring systems for soft material like calipers or 3D measuring machines, but we always recommend using a visual inspection system.
The Double Blade Cutter is compatible and recommended for this product, making it easy to control the profile of the shape.
