P25
P25
P25 is a product specially developed for making highly complex total impressions in areas requiring a non-flowing product.
It’s a pasty product, which means it doesn’t run, enabling it to be applied to vertical or overhanging surfaces.
The final impression is highly flexible (25 Shore A), able to deform on demolding and accept extraction stresses of up to 30%.

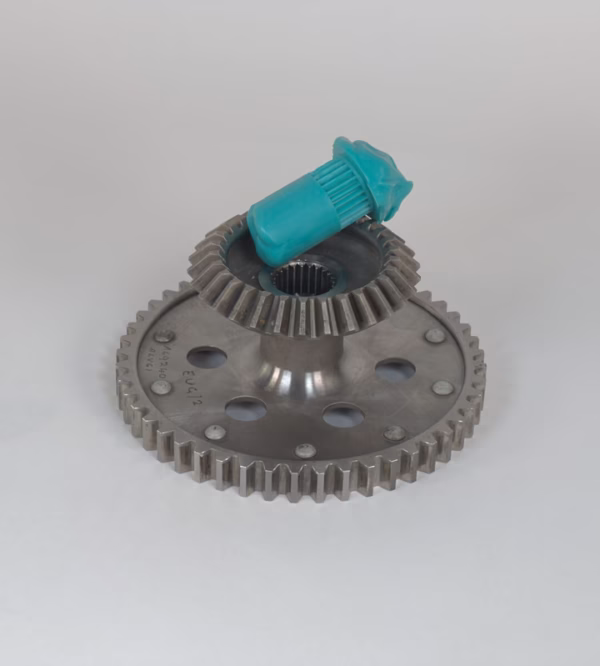

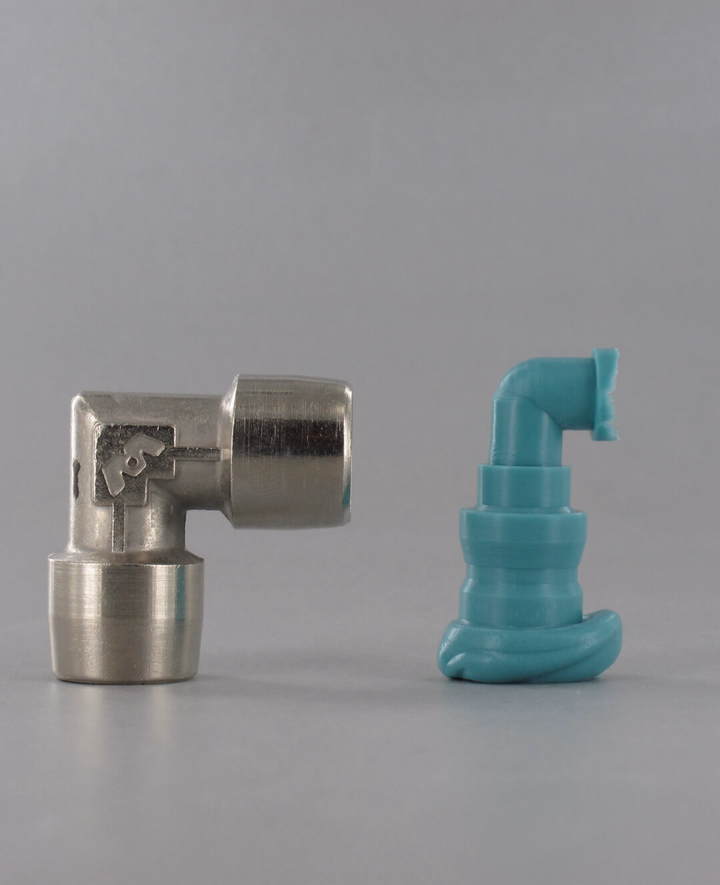

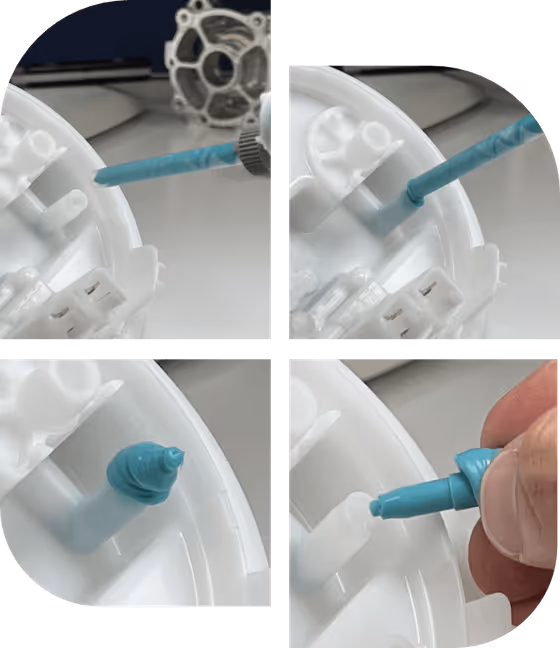

P25 is particularly recommended for creating full internal cavities in small-diameter through bores. It’s injected by compression, and its high elongation capacities enables it to be removed even from very complex shapes.

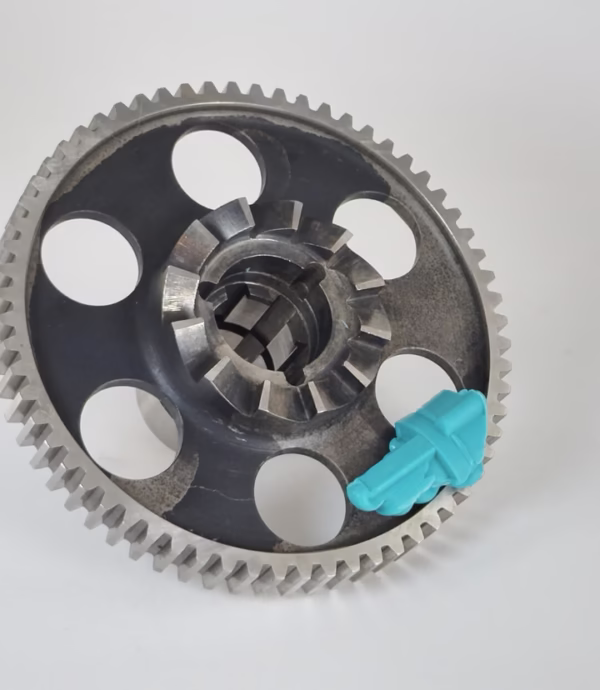

It can also be used to create partial replicas on highly complex external shapes, such as T-slots, grooves or notches.
As with every plastiform, the impression is extremely precise, reproducing every detail (shape, dimension, appearance, surface finish, etc.) to micron (µm) accuracy.
This impression can be cut with the Double Blade Cutter to obtain a profile of the replica, considerably improving the ease of measurement.
- Removal Constraint : 15%
- Initial Consistency : Pasty
- Final Consistency : Flexible
- Final Hardness : 25 Shore A
- Working Time : 01:30 min.
- Curing Time : 03:00 min.
- Polymerization Time : 06:00 min.
- Double Blade Cutter : YES
- Measurements : WITHOUT CONTACT
The P25 is used for the following application:
- Dimensional control: P25 is suitable for highly complex impressions in areas requiring a non-flowing product.
P25 is easy to apply — just follow the instructions for use.
Note that this product is a pasty plastiform, so, using a tip with the nozzle is not recommended.
Before taking an impression, it’s mandatory to degrease the part with a validated degreaser or contact cleaner. We recommends the DN1 for this purpose, as it has been validated for use on control areas.
