Standard Nozzle
Standard Nozzle

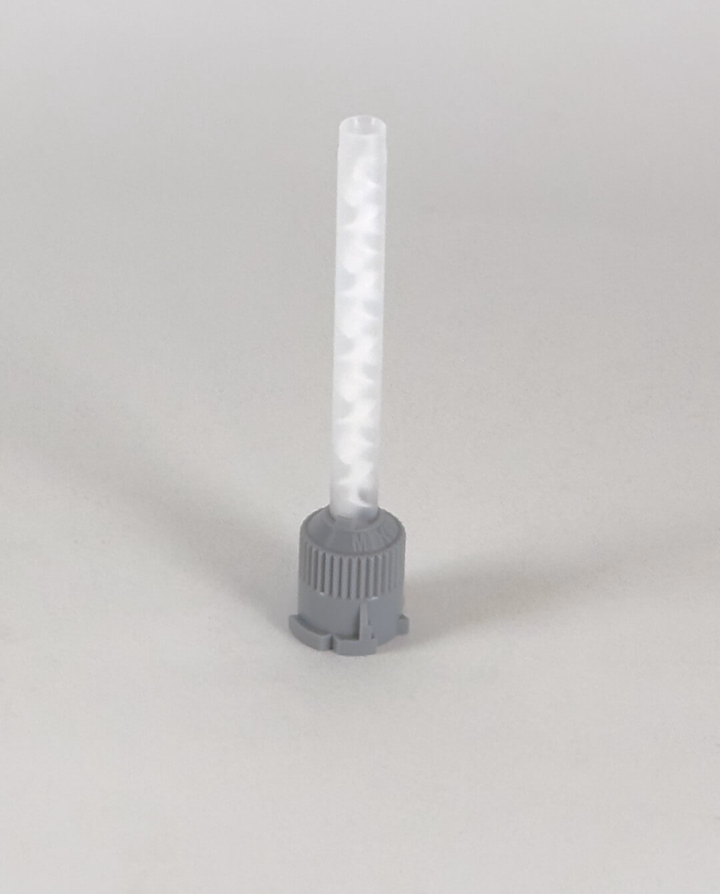

Nozzles are small plastic parts designed for mixing two-component Plastiform in cartridges. They ensure a perfect 1:1 ratio mix, resulting in a homogeneous product at the outlet.
The nozzle fits every 50ml cartridges, and its length (8.2cm) allows you to easily reach the end of the cavities to be controlled.
We recommend starting the injection only when you are fully ready to perform your controls.
Once the product is mixed inside, it begins to cure and will polymerize within a few minutes. After polymerization, the nozzle is no longer reusable and must be discarded.
Standard nozzles are designed to fit tips at their ends.
While their use is not mandatory, we recommend using them to control the output flow more effectively.

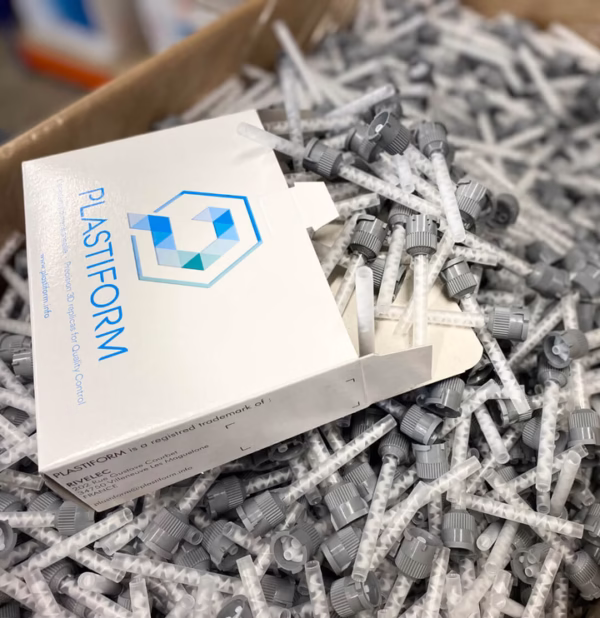

Nozzles are essential accessories for applying plastiform from cartridges. You can find standard nozzles in cartridge boxes or in individual bags with their tips.
The nozzle is attached to the end of the cartridge after you remove the cap. Simply push the nozzle and turn it to the right to lock it in place.
Once the nozzle is mounted on the cartridge, you can attach the assembly to the dispensing gun and start your application.
Before applying a plastiform, you must clean the application surface with DN1 degreaser.
To install a tip on a standard nozzle, clip it to the nozzle’s outlet. The nozzle and tip are specially designed to fit together. Be sure to mount the tip on the nozzle before attaching the injector to a cartridge.
