F50
F50
F50 stands as the most versatile product among the whole Plastiform range.
Renowned for its exceptional technical properties, F50 efficiently addresses a wide range of dimensional control challenges in various industries. It’s remarkable fluidity and flexibility enable the F50 to seamlessly infiltrate and exit even the most intricate spaces.
It is compatible with the Double Blade Cutter and its impressions can be cut, enhancing its user-friendliness when measuring the impression comes. The final form of the F50 settles into a Semi-Flexible state, with a hardness of 50 Shore A.
While it does not possess a high capacity for deformation, it tolerates a maximum Extraction Constraint of up to 10%. Therefore, it’s best suited for simpler mould shapes that require less complexity in unmoulding.
The F50 is specifically recommended for capturing impressions in straightforward or moderately complex internal structures. Its versatility extends to both total and partial impressions.
Furthermore, it can be used in crafting custom-made protective gear, caps, and shields for surface treatments.
The precision of the F50 impression is outstanding. It accurately replicates every minute detail of the surface — including shape, dimensions, texture, and overall condition — down to the micron level. This ensures that the final output is not only precise but also meets the highest standards of professional quality.
- Removal Constraint : 10%
- Initial Consistency : Fluid
- Final Consistency :
- Final Hardness : 50 Shore A
- Working Time : 1:30 min.
- Curing Time : 6:00 min.
- Polymerization Time : 8:00 min.
- Double Blade Cutter : YES
- Measurements : WITHOUT CONTACT
The F50 stands as one of the best products for accomplishing:

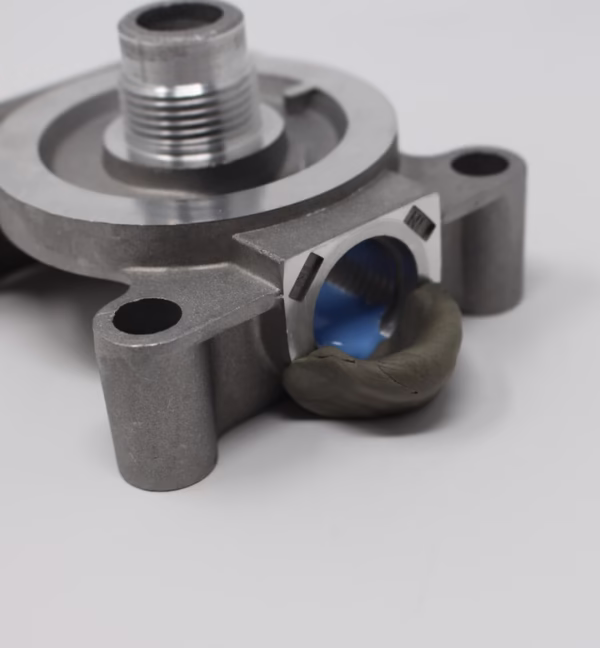

- Partial Impression of Internal Forms: Expertly designed to obtain measurements from internal shapes that may present challenges in extraction.
- Complete Impression of Simple Internal Forms: Ideal for accurately measuring diameters and radius.
To achieve optimal results, users are advised to adhere to the guidelines provided in the accompanying instructions.
For best practice, it is recommended to pour the F50 slowly, using a nozzle, ensuring that the product flows thoroughly into every corner of the targeted area. This method is crucial to prevent the formation of air bubbles.
The guidelines mentioned above are equally applicable to all other fluid products within the Plastiform range, enhancing their versatility and effectiveness in similar applications.
