F85
F85
The F85 is an extremely fluid product easy to insert into parts and that become very rigid after polymerizing.
It produces a rigid final impression with a hardness of 85 Shore A, meaning it is non-flexible and does not deform or accept any stress or elongation during demolding.
Due to its lack of flexibility, F85 is best used for controlling simple shapes where no extraction stress is expected. It does not tolerate any stress during extraction: 0%.
Th F85 is designed to make controlling simple shapes easier. It is contact measurable which enable measurement with and without contact.
If you need to check simple shapes but lack visual inspection instruments, F85 is an excellent choice.
Additionally, F85’s rigidity makes it a good product for mechanical reinforcement. It strengthens the part while having enough flexibility to absorb some vibrations.
- Removal Constraint : 0%
- Initial Consistency : Fluid
- Final Consistency : Rigid
- Final Hardness : 85 Shore A
- Working Time : 00:30 min.
- Curing Time : 06:00 min.
- Polymerization Time : 10:00 min.
- Double Blade Cutter : NO
- Measurements : WITH CONTACT
The F85 is suitable for both of these applications:

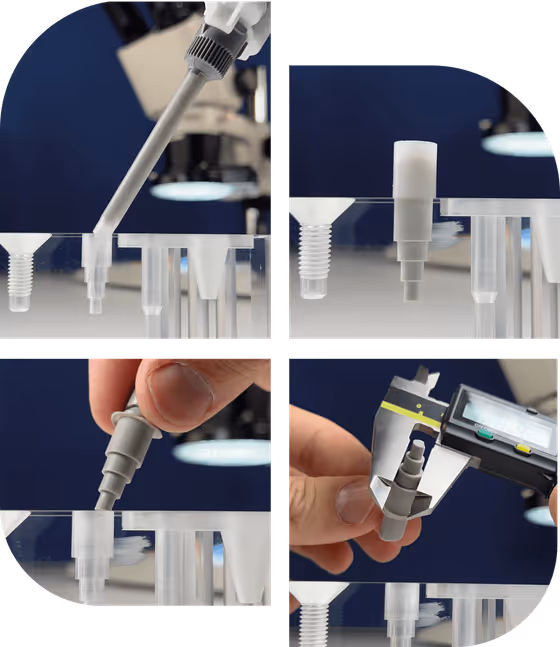

- Dimensional control of simple internal forms: When you need contact measurements and the replica doesn’t need to be stretched on the way out.
- Mechanical reinforcement of a part before machining. Its rigidity makes good reinforcement for fragile components.
It is one of the most fluid plastiforms, so it’s strongly recommended to use a tip to control the product’s flow rate. This approach allows you to pour the product slowly and avoid creating air bubbles.
Refer to the instructions for use for specific recommendations and to the technical sheet for technical data about this product.
It is not possible to use the Double Blade Cutter with the F85.
