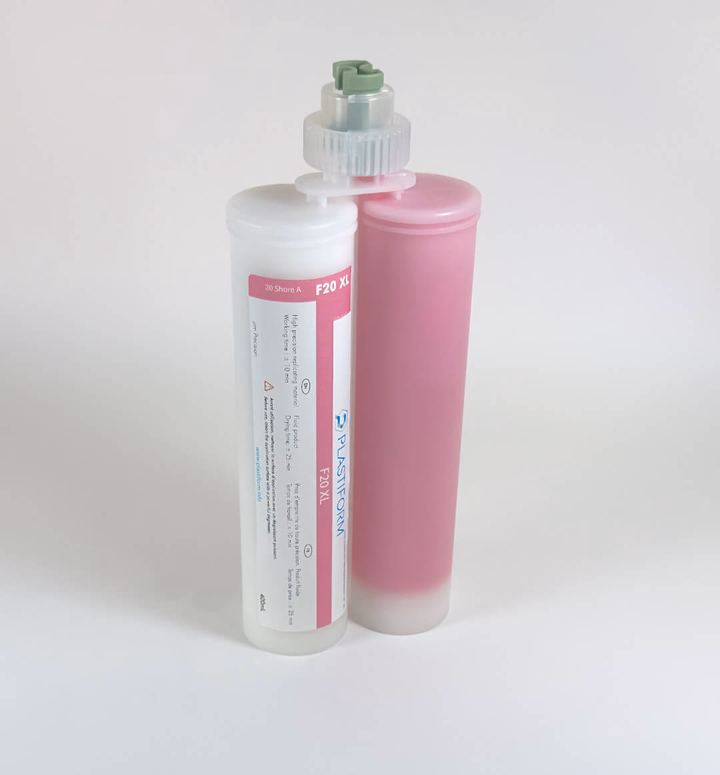

F20 XL
F20 XL
The F20 XL is ideal for large total impressions when you need to measure a big radius or diameter.
Like all XL products in the Big Volume range, it benefits from an extended working & polymerization time.
The impression is very flexible, with a final hardness of 20 Shore A, allowing it to support strong stresses and deformations during the demolding step.
It is a product recommended for impressions of complex internal shapes such as threads and grooves, ensuring the Removal Constraint does not exceed 30%.
The impression is extremely precise, capturing all details of the part : shape, surface conditions and dimensions, with a micron accuracy.
The technical characteristics of the F20 XL also make it suitable for protecting or preserving parts and it serves as an excellent substitute for sealing joints.
As with all high-volume products, the F20 XL has an extended working time of about 10 minutes, and a polymerization time of approximately 25 minutes. These timeframes allow operators to pour the product into large spaces effectively.
- Removal Constraint : 30%
- Initial Consistency : Big Volume
- Final Consistency : Flexible
- Final Hardness : 20 Shore A
- Working Time : 05:00 min.
- Curing Time : 20:00 min.
- Polymerization Time : 25:00 min.
- Double Blade Cutter : NO
- Measurements : WITHOUT CONTACT
The F20 XL is designed to meet the following applications:
- Dimensional Control: When you need to measure the radius or diameter of complex internal forms.
- Protection, masking: Custom protective molds against surface treatments.
- Custom joint and sealing: To ensure a component is waterproof or well isolated.
It can also be used for the dimensional control of simple internal forms.

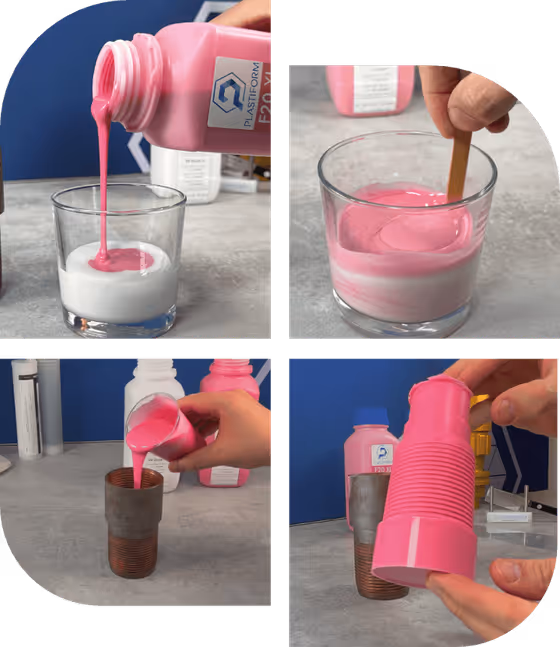

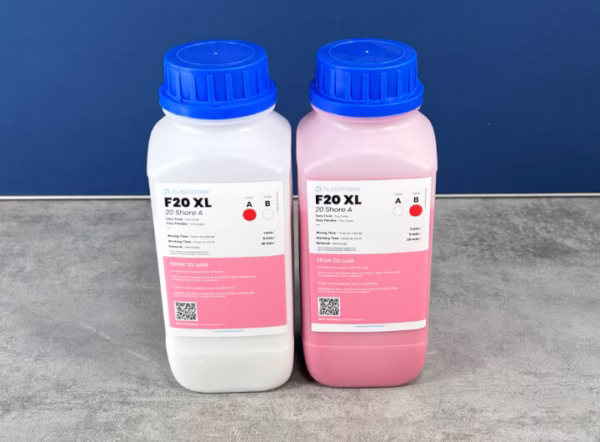

When using this product in bottle or cans, you have to manually mix both components in a 1:1 ratio. Strictly follow the guidelines in the instructions for use and Technical Sheet.
Manual mixing requires careful attention to the quantities mixed and the product’s working time.
We recommend pouring the F20 XL slowly, allowing it to flow into every corner while avoiding air bubbles. These instructions also apply to all other high-volume fluid products in the Plastiform range.
As the replica is very flexible, its dimensions should only be checked with visual measuring machines such as: Profile projectors, Microscopes, Optical Measuring Devices, etc.
