F30 Visual
F30 Visual
The F30 Visual is a very fluid product designed to easily infiltrate small cavities or details of a surface.
It can fill spaces with a diameter of up to 0.1 mm, adapting to various shapes with micron-level accuracy. Once set, it remains flexible and elastic, with a hardness of 30 Shore A, allowing easy removal from intricate parts.
This product is specifically designed for visual inspections of surface conditions.

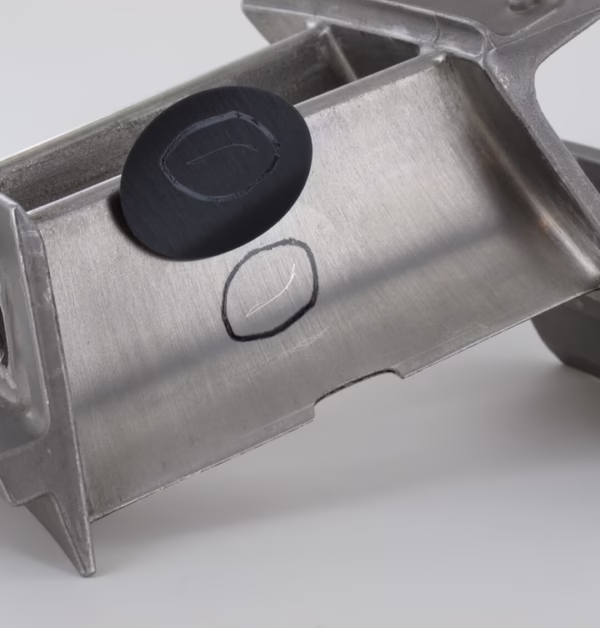

It accurately replicates surface details, capturing features like tool marks, scratches, streaks, slits, and pitting, as well as shape variations like flatness, undulation, and circularity.

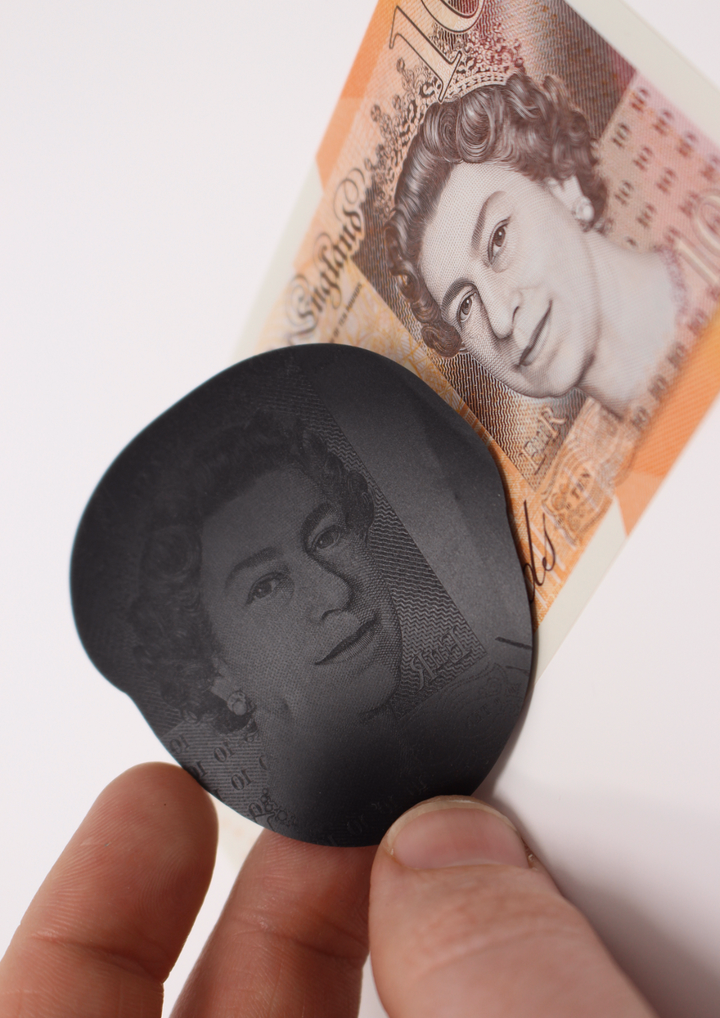

The replica’s high level of detail, along with its stable structure during extraction, ensures reliable inspection outcomes without leaving any residue.
F30 Visual’s black color enhances visibility during inspection.
- Removal Constraint : 20%
- Initial Consistency : Fluid
- Final Consistency : Flexible
- Final Hardness : 30 Shore A
- Working Time : 01:00 min.
- Curing Time : 06:00 min.
- Polymerization Time : 10:00 min.
- Double Blade Cutter : NO
- Measurements : WITHOUT CONTACT
The F30 Visual is a versatile enough product that can fit multiple applications at a same time!

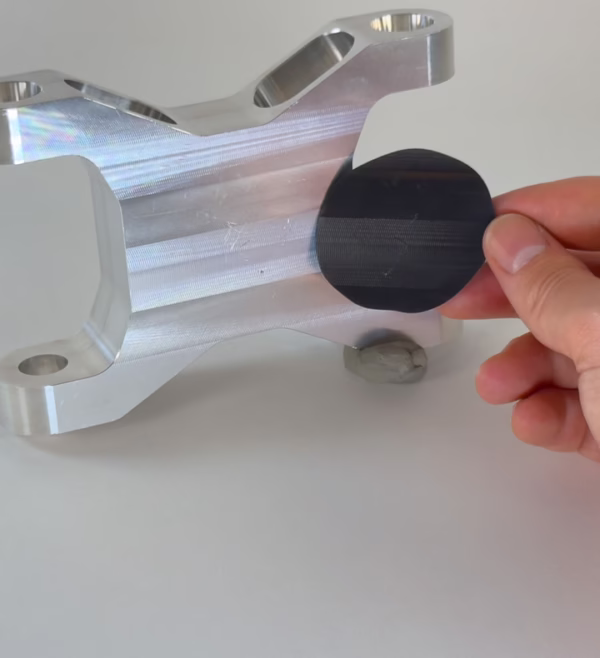

- Visual Surface Finishing control: It can replicate a surface, capturing all imperfections for easier inspection, especially for hard-to-reach or inaccessible features.
- Dimension Control with total impression: Its high fluidity and generous removal constraint make it an excellent choice for creating total impressions.

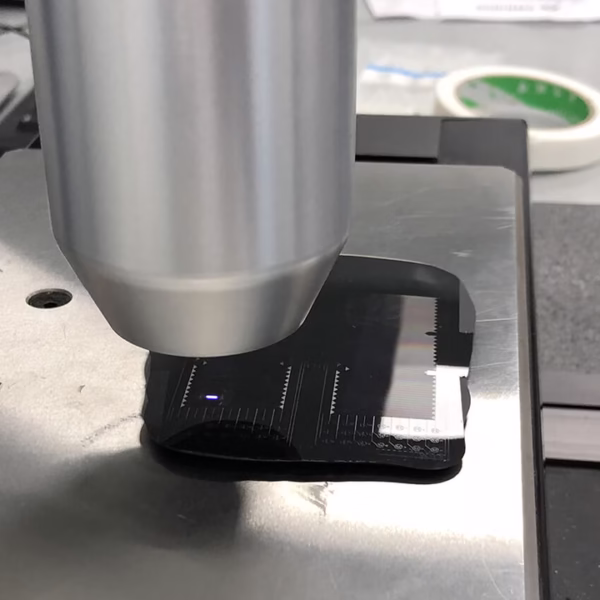

- Visual Roughness Inspection: The F30 Visual can be used for roughness inspections with non-contact devices.

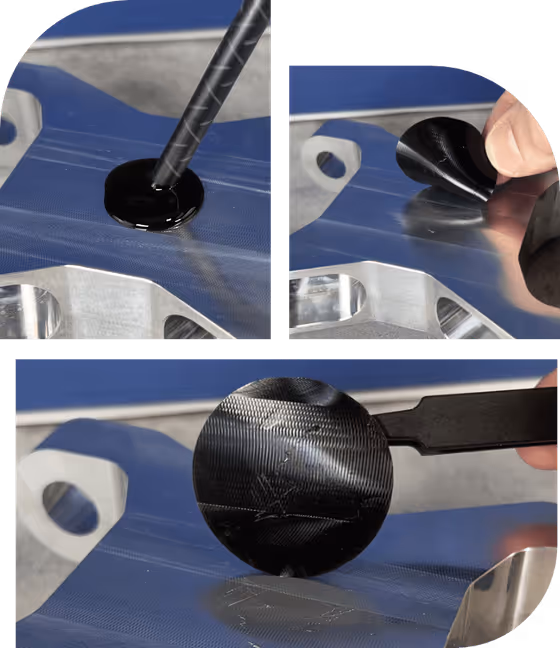

To use F30 Visual, always follow the instructions closely. When pouring the product, do it slowly and use a tip to ensure a controlled flow. Make sure it seeps into all corners of the area you are working on. Take care to avoid creating air bubbles during the process. These guidelines apply to all fluid products in the Plastiform range.
Due to its high fluidity, care must be taken when applying it to prevent unwanted spills or dispersions.
